Shelly 4 channel DIN Rail Relay Switch with WiFi, LAN and Bluetooth Connection (Black)
Shelly 4 channel DIN Rail Relay Switch with WiFi, LAN and Bluetooth Connection (Black) - Image 2
Shelly 4 channel DIN Rail Relay Switch with WiFi, LAN and Bluetooth Connection (Black) - Image 3
Shelly 4 channel DIN Rail Relay Switch with WiFi, LAN and Bluetooth Connection (Black) - Image 4

Shelly 4 channel DIN Rail Relay Switch with WiFi, LAN and Bluetooth Connection (Black)

$134.75

  • Power Supply AC: 11-230V 50/60Hz
  • Maximum Load: 40A, with up to 16A per channel
  • Electrical consumption: <4W
  • WiFi Protocol: 802.11 b/g/n
  • WiFi Radio FrequencyL 2412-2484 MHz
Categories: ,

Description

Professional DIN rail mountable 4 channel relay with Wi-Fi, LAN, and Bluetooth connection. Suitable for home and commercial facility automation with remote control and precise power management. Enhanced safety features and compatible with the many common home automation platforms.

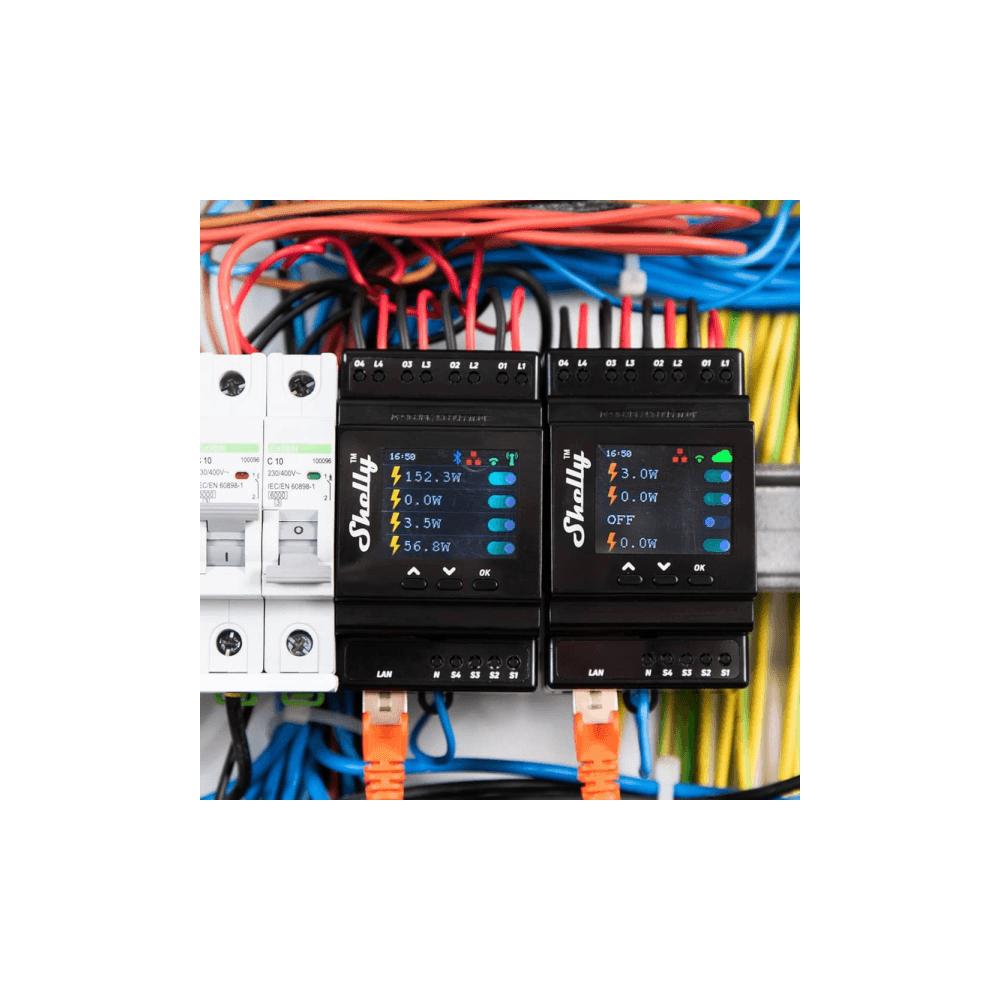

Enhanced with temperature, overpower, and overvoltage load protection, the Shelly Pro series is designed to be installed inside the breaker box (DIN rail). Allowing complete smart automation with no additional cables or wiring, the Shelly Pro series is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

*RC Snubber required for inductive loads.

Power

  • Power supply AC110-230V ±10%, 50/60Hz
  • Power supply DCNo
  • Maximum load40A, with up to 16A per channel
  • Electrical consumption< 4W

Features

  • Dry contacts: No
  • Roller shutter mode: No
  • Device temperature protection: Yes
  • Overload protection: Yes
  • Power measurement: Yes
  • HTTP/HTTPS webhooks: Yes
  • Custom scripts(mJs): Yes
  • Channels: 4
  • Operational temperature: -20°C to +40 °C

Connectivity

  • Ethernet: Yes
  • Wi-Fi Protocol: 802.11 b/g/n
  • Wi-Fi Radio frequency: 2412 – 2484 MHz
  • Wi-Fi Radio signal power: 1mW
  • Operational range (depending on local construction)• up to 50 m outdoors up to 30 m indoors
  • Bluetooth: Yes

Dimensions

  • (H x W x L)90 x 52 x 57 mm
