Shelly WIFI-operated 8A relay switch with power monitoring (Red) 2 Pack
$37.17
- Power supply: 110-240V ±10% 50/60Hz AC
- Max switching voltage: AC240V
- Max switching current: AC8A
- Max switching power: AC2000W
- Power consumption:< 1.2W
Description
WIFI-operated 8A relay switch with power monitoring (2 pack)

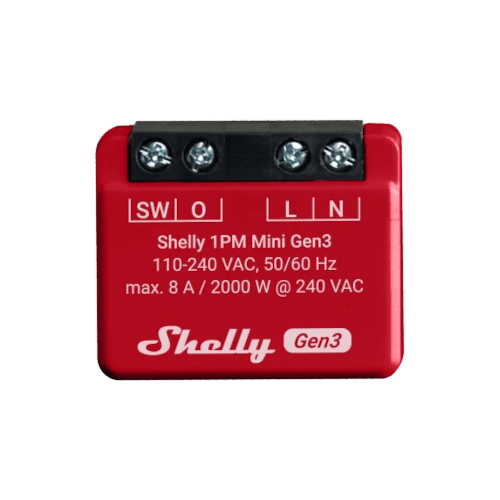

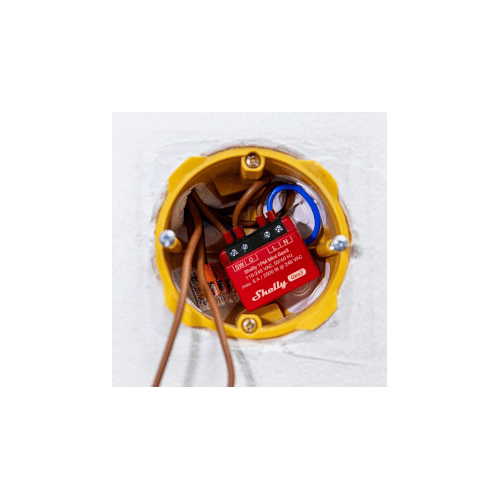

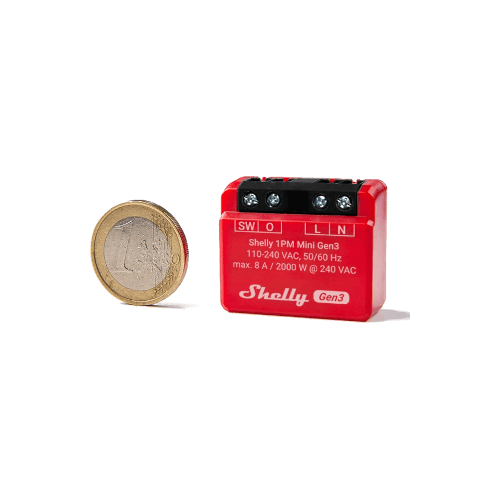

The smallest relay switch in the world for smart control and precise power monitoring. Automate your lights or small electrical appliances in less than 10 minutes and control and monitor them from anywhere. Small enough to fit behind any wall switch or socket, the Shelly 1PM Mini Gen3 can be retrofitted and is highly compatible with your existing smart ecosystem.
Shelly Gen3 devices pack an all new 8MB Shelly ESP Processor, allowing for improved responsiveness, better power efficiency and many more new functions. Shelly ESP processor builds further on the Plus-series ESP-32 devices which already pack an extremely fast processor, quicker connectivity, improved integration, and enhanced safety! You can now add devices easily via Bluetooth connection, using the Shelly Cloud App.
- Equipped with a new processor & increased flash memory – ESP Shelly
- Improved durability of terminals
- Supports up to 8A at 240V AC
- Wi-Fi range extender & Bluetooth gateway
- Precise and real-time power metering with free cloud data storage for analysis and energy usage optimization.
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation platform
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Power
- Power supply110-240V ±10% 50/60Hz AC
- Max switching voltage AC240V
- Max switching voltage DCN/A
- Max switching current AC8A
- Max switching current DCN/A
- Max switching power AC2000W
- Max switching power DCN/A
- Power consumption< 1.2W
- External protection10A, tripping characteristic B or C
- 6kA interrupting rating
- Energy limiting class 3
Features
- Clean contact relay
- Power measurement
- Voltage protection / Cut-off
- Current protection / Cut-off
- Max power protection / Cut-off
- Internal-temperature sensor
- Ambient temperature-20°C to 40°C / -5°F to 105°F
- Humidity30% to 70% RH
- Schedules 20
- Webhooks (URL actions)20 with 5 URLs per hook
- MQTT
- UDP
- Scripting
Connectivity
- Wireless/WIFI Protocol802.11 b/g/n (2.4 GHz)
- Frequency2400-2495 MHz
- Max. RF power<20 dBm
- Wi-Fi Range up to 50m outdoors, up to 30m indoors
- Bluetooth Protocol 4.2
- Bluetooth Range up to 30m outdoors, up to 10m indoors
